Haiyan Kangyuan Medical Instrument Co., Ltd. has two types of breathing circuits: single pipe type and double pipes type.
[Application]:
The product should be used together with the anesthesia machine, ventilator, tidal device and nebulizer for clinic patients to establish a respiratory connection channel.
[Composition and product features]
The product is made of EVA material.

The product is composed of the basic configuration components and the chosen configuration components.

Basic configuration consists of a corrugated hose and various joints. Including: the corrugated hose contains single pipeline type telescopic and retractable and the dual pipeline type telescopic and retractable; joints comprise a joint 22mm/15mm, Y type joint, right angle or straight shaped adapter.

Chosen configuration includes respiratory filter, a face mask, breathing bag subassembly. The corrugated hose of the product is made of PE, medical PVC material and the joint is made of PC and PP materials. Products are aseptic.
[Images]

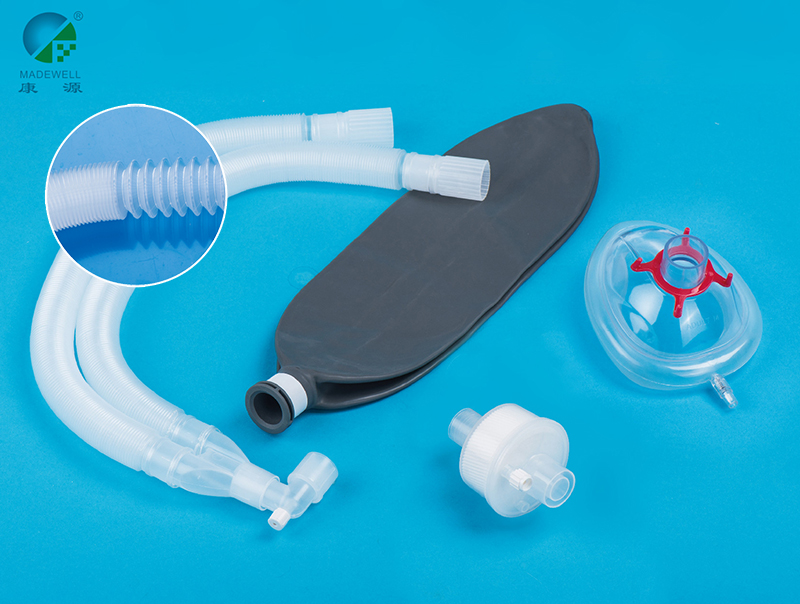

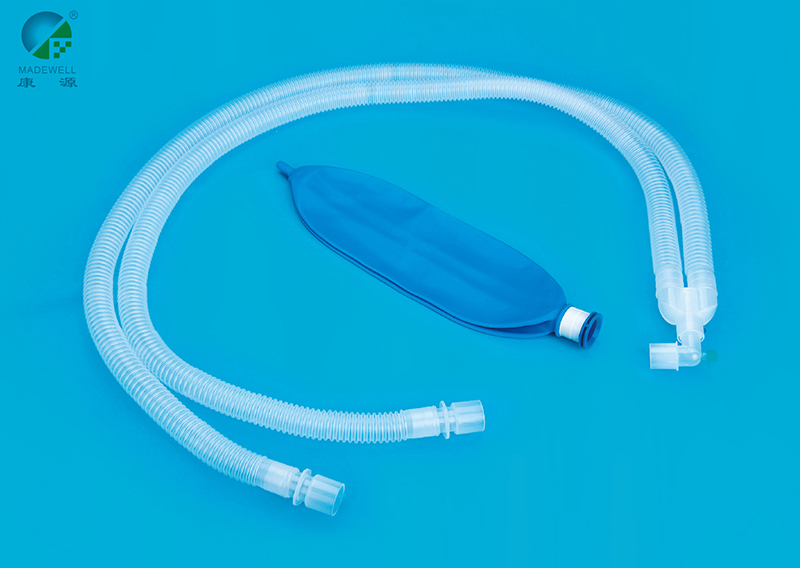

Breathing Circuits for single use

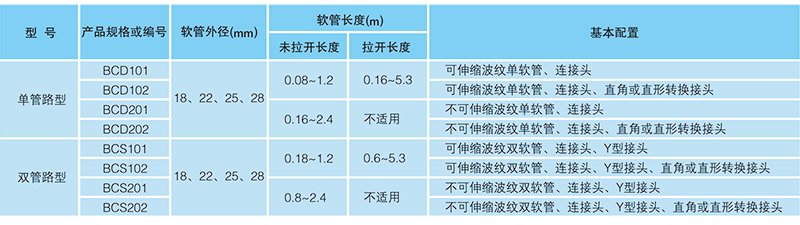

[Specification]

[Instruction for use]
1.Open the packing and take out the product. According to the type and size of the configuration, check whether the product lacks accessories.
2.According to the clinical need, select the appropriate model and configuration; according to the patient’s anesthesia or breathing routine operation mode, connecting the respiratory pipe components is ok.
